ADV-102
제품 비디오
제품 설명
1.Have high production efficiency, high level of automation, low labour intensity, environmental protection and stable quality etc.
2.The height and angle of rollers are adjustable,can satisfy kinds of specification
3.Easy-handing and safety
4.Advantage design and stable and mature quality
5.Almost full automatic control
6.Durable and reliable

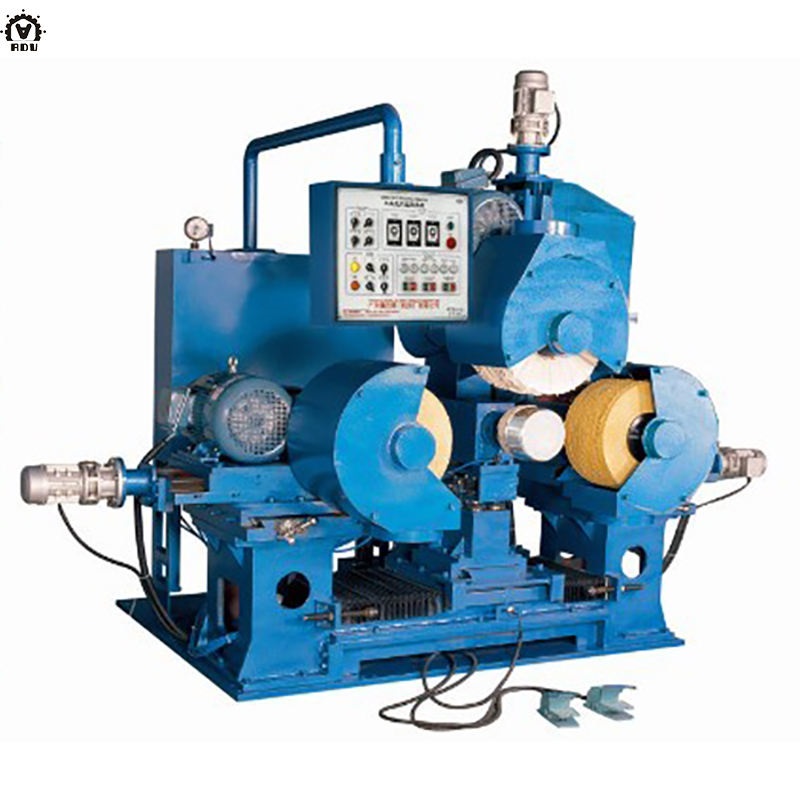

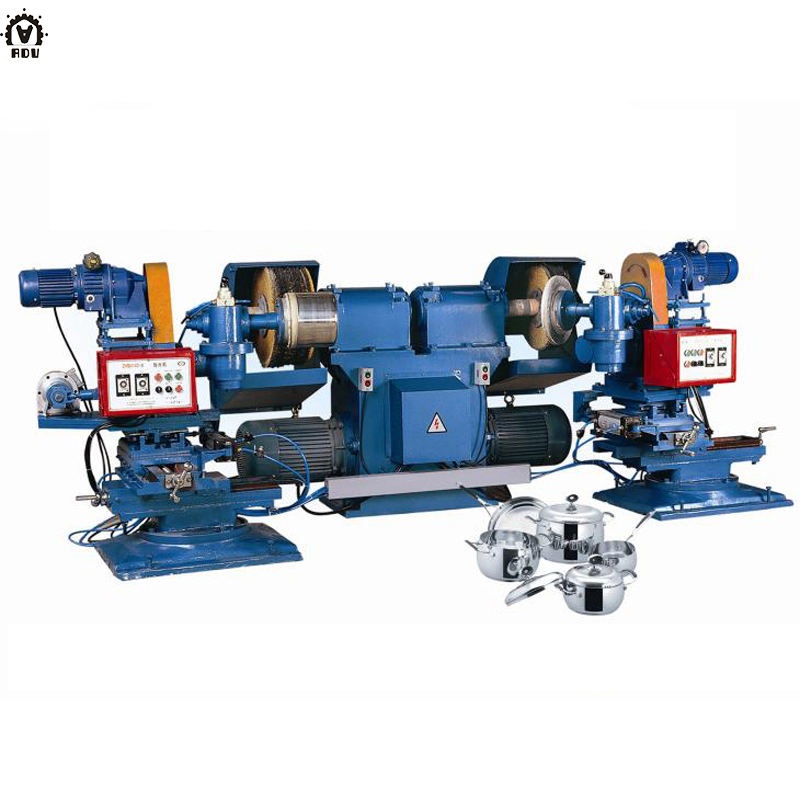

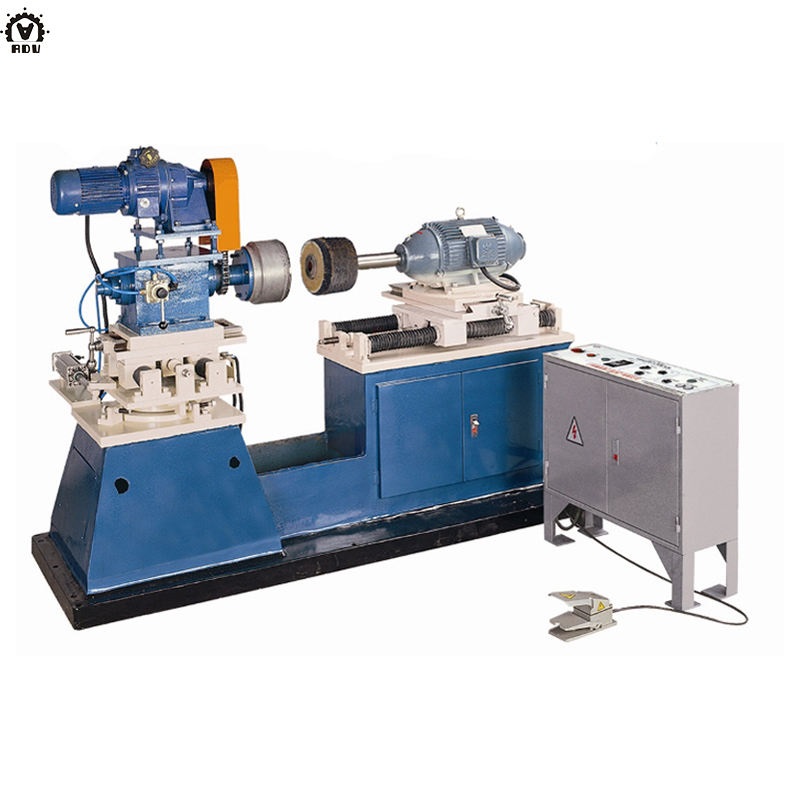

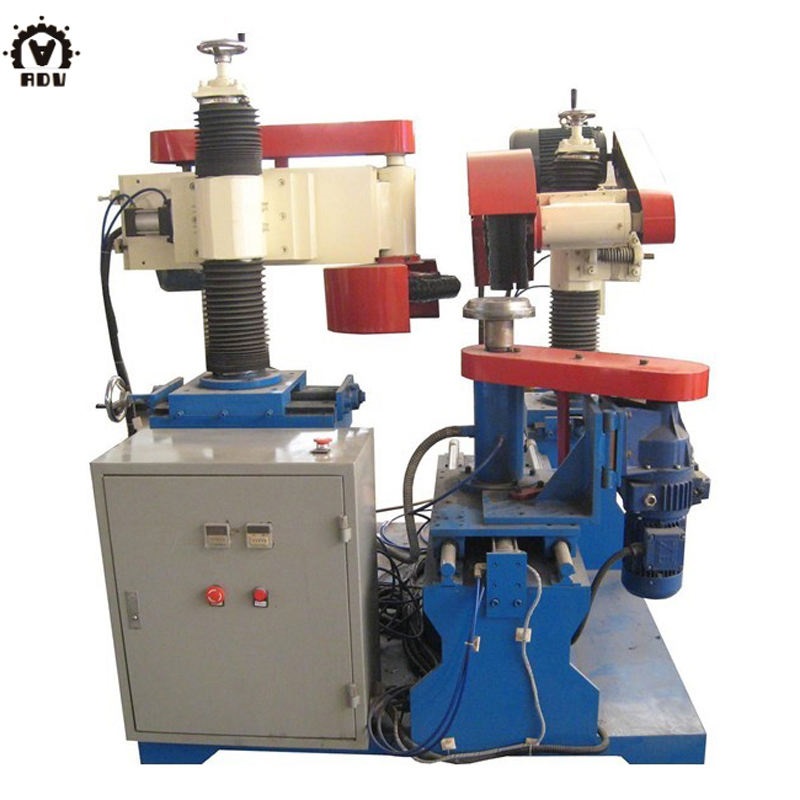

7.High Technological Properties Pan Polishing Machine
8.Using cloth emery disc , low cost and high efficient ,mirror polished
9.Frequency speed control ,high quality,Low noise and beautiful brightness of the surface
기계 매개 변수
| Size Of Workpiece | ≤Ø400*350mm |
| Size Of Abrasive Wheel | ≤ Ø430*330mm |
| Polishing Wheel Motor | 11*2kw |
| Workpiece Motor | 0.75*2kw |
| Workpiece Reciprocating Motor | 0.37kw |
| Speed Of Abrasive Wheel | 2160r/min |
| Speed Of Workpiece | 28-140r/min |
| Machine Dimensions | 3575*1256*1275mm |
| Aproximated Weight | 2300kg |
| Warranty | 2years |
애플리케이션 산업 및 샘플
